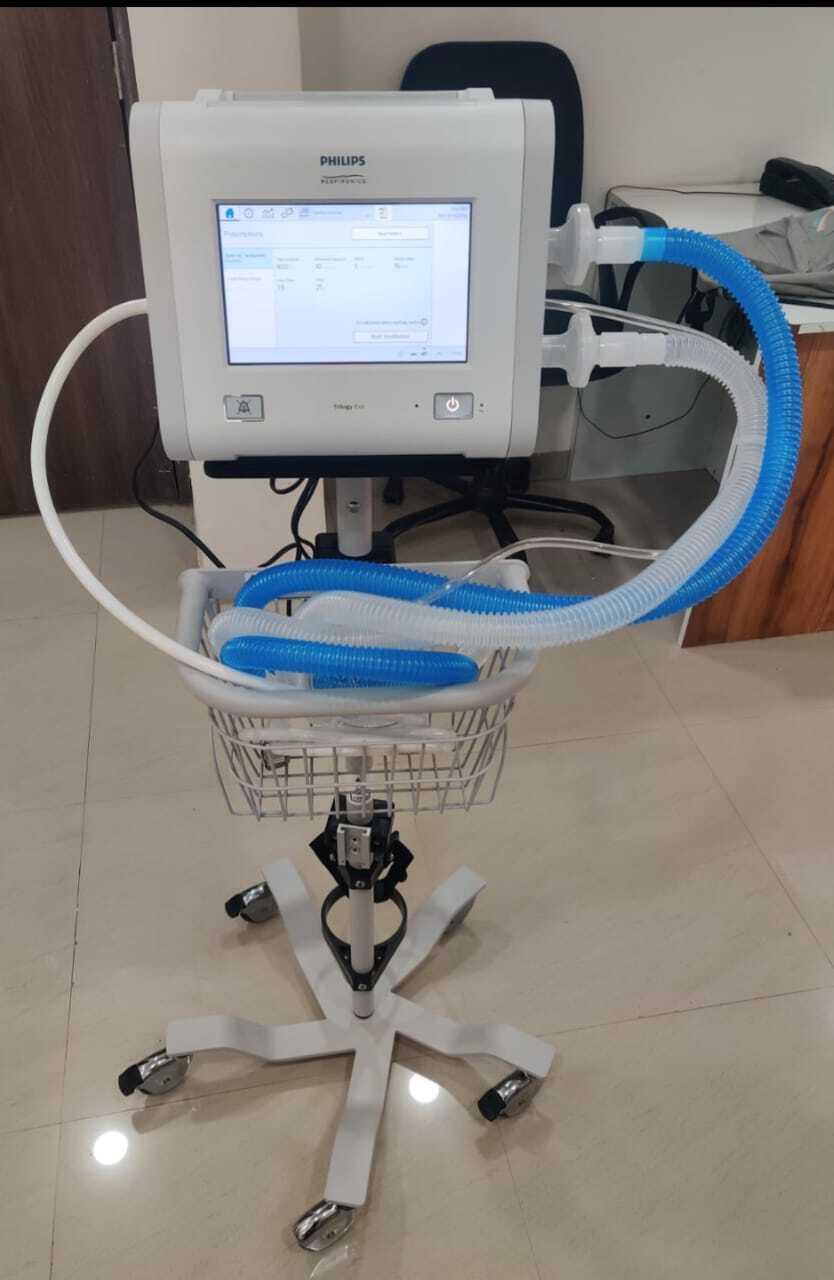

Philips Trilogy Evo OBM Ventilator

Description

PRODUCT DESCRIPTION

TECHICAL SPECIFICATIONS

Ventilation modes

A/C-PC	Assist control (pressure control)
A/C-VC	Assist control (volume control)
CPAP	Continuous positive airway pressure
PSV	Pressure support ventilation
S/T	Spontaneous/timed ventilation
SIMV-PC	Synchronized intermittent mandatory ventilation (pressure control)
SIMV-VC	Synchronized intermittent mandatory ventilation (volume control)
MPV-PC	Mouthpiece ventilation (pressure control)
MPV-VC	Mouthpiece ventilation (volume control)

Physical

Weight	5.2 kg
Size	16.5 cm D x 28.6 cm W x 24.5 cm H 6.48” D x 11.25” W x 9.65” H
Screen dimensions	8”, 20.32 cm

Oxygen

Low flow	0 to 30 l/min; maximum 10 psi
High pressure	280 to 600 kPa (41 to 87 psi)

Measured and displayed patient parameters

Tidal volume (Vti or Vte)	0 to 2000 ml
Minute ventilation (MinVent)	0 to 30 l/min
Leak	0 to 200 l/min
Respiratory rate (RR)	0 to 90 BPM
Peak inspiratory flow (PIF)	0 to 200 l/min
Peak inspiratory pressure (PIP)	0 to 90 cmH2O
Mean airway pressure	0 to 90 cmH2O
Percentage spontaneous triggered breaths (%Spont Trig)	0 to 100%
I:E ratio	9.9:1 to 1:9.9
Dynamic compliance (Dyn C)	1 to 100 ml/cmH2O
Dynamic resistance (Dyn R)	5 to 200 cmH2O/l/sec
Dynamic plateau pressure (Dyn Pplat)	0 to 90 cmH2O
Auto-PEEP	0 to 20 cmH2O
FiO2 with FiO2 sensor	21% to 100%
SpO2 with pulse oximeter accessory	0 to 100%
Pulse rate with pulse oximeter accessory	18 to 321 beats per minute
EtCO2 with CO2 accessory	0 to 150 mmHg

Electrical

AC input voltage	100V – 240V, 50/60 Hz, 1.7 – 0.6A
DC input voltage	12/24V 6.5A
Internal and detachable Li-on batteries	15 hours’ nominal total run time per method in IEC 80601-2-72 (7.5 hours each battery)
Charge time for detachable and internal battery	from 0% to 80%: 2.5 hours; from 0% to 100%: 3.5 hours

Alarms

Inspiratory Pressure	PEEP+1 to 89 cmH2O
Tidal Volume	OFF, 10 – 2000 ml
Minute Ventilation	OFF, 0.2 – 30 L/min
Respiratory Rate	OFF, 1 – 90 BPM
Circuit Disconnection	OFF, 5 – 60 sec
Apnea Interval	5 to 60 sec
No trigger	OFF; 0.5-15 min (ONLY in MPV)

Controls

AVAPS with passive circuit	PSV, S/T, and A/C-PC modes only
Tidal volume	35 – 2000 ml on Dual Limb and Active Flow circuits, 50 – 2000 ml on passive and active PAP circuits
Breath rate	0 – 80 BPM
PEEP	0 – 35 cmH20 for active circuits 3 – 25 cmH20 for passive circuits
EPAP/CPAP	3 to 25 cmH20
IPAP	3 to 60 cmH20
Pressure support/pressure control	0 to 60 cmH20
Inspiratory time	0.3 – 5.0s
Rise time	0 to 6
Triggering and cycling	Off, AutoTrak, Sensitive, AutoTrak, and Flow Trigger
Flow trigger sensitivity	0.5 – 9 l/min
Flow cycle sensitivity	10% – 90% of peak flow
Flow pattern	Square, Ramp
FiO2	21% – 100%
Inspiratory time min/max	0.3 to 3.0 sec
Backup ventilation	ON-OFF

CONTENT OF BOX

WARRANTY: 2 Years
